SmashHammer.Scripting.ITransformable Interface Reference

A transformable entity. More...

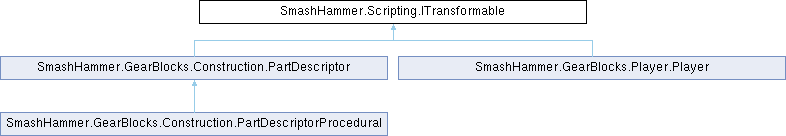

Inheritance diagram for SmashHammer.Scripting.ITransformable:

Public Member Functions
Vector3Proxy	TransformDirection (Vector3Proxy direction)
	Transforms direction from local space to world space.
Vector3Proxy	TransformVector (Vector3Proxy vector)
	Transforms vector from local space to world space.
Vector3Proxy	TransformPoint (Vector3Proxy point)
	Transforms point from local space to world space.
Vector3Proxy	InverseTransformDirection (Vector3Proxy direction)
	Transforms direction from world space to local space.
Vector3Proxy	InverseTransformVector (Vector3Proxy vector)
	Transforms vector from world space to local space.
Vector3Proxy	InverseTransformPoint (Vector3Proxy point)
	Transforms point from world space to local space.

Properties
Vector3Proxy	Position [get]
	The world position.
QuaternionProxy	Orientation [get]
	The world orientation.
Vector3Proxy	LocalPosition [get]
	The local position.
QuaternionProxy	LocalOrientation [get]
	The local orientation.
Vector3Proxy	Right [get]
	The right vector.
Vector3Proxy	Up [get]
	The up vector.
Vector3Proxy	Forward [get]
	The forward vector.

Detailed Description

A transformable entity.

Member Function Documentation

TransformDirection()

Vector3Proxy SmashHammer.Scripting.ITransformable.TransformDirection

(

Vector3Proxy

direction

)

Transforms direction from local space to world space.

Parameters

direction

The direction to transform.

Returns

The transformed direction.

TransformVector()

Vector3Proxy SmashHammer.Scripting.ITransformable.TransformVector

(

Vector3Proxy

vector

)

Transforms vector from local space to world space.

Parameters

vector

The vector to transform.

Returns

The transformed vector.

TransformPoint()

Vector3Proxy SmashHammer.Scripting.ITransformable.TransformPoint

(

Vector3Proxy

point

)

Transforms point from local space to world space.

Parameters

point

The point to transform.

Returns

The transformed point.

InverseTransformDirection()

Vector3Proxy SmashHammer.Scripting.ITransformable.InverseTransformDirection

(

Vector3Proxy

direction

)

Transforms direction from world space to local space.

Parameters

direction

The direction to transform.

Returns

The transformed direction.

InverseTransformVector()

Vector3Proxy SmashHammer.Scripting.ITransformable.InverseTransformVector

(

Vector3Proxy

vector

)

Transforms vector from world space to local space.

Parameters

vector

The vector to transform.

Returns

The transformed vector.

InverseTransformPoint()

Vector3Proxy SmashHammer.Scripting.ITransformable.InverseTransformPoint

(

Vector3Proxy

point

)

Transforms point from world space to local space.

Parameters

point

The point to transform.

Returns

The transformed point.

Property Documentation

Position

Vector3Proxy SmashHammer.Scripting.ITransformable.Position

get

The world position.

This transform's world position.

Orientation

QuaternionProxy SmashHammer.Scripting.ITransformable.Orientation

get

The world orientation.

This transform's world orientation.

LocalPosition

Vector3Proxy SmashHammer.Scripting.ITransformable.LocalPosition

get

The local position.

This transform's local position.

LocalOrientation

QuaternionProxy SmashHammer.Scripting.ITransformable.LocalOrientation

get

The local orientation.

This transform's local orientation.

Right

Vector3Proxy SmashHammer.Scripting.ITransformable.Right

get

The right vector.

This transform's right vector in world space.

Up

Vector3Proxy SmashHammer.Scripting.ITransformable.Up

get

The up vector.

This transform's up vector in world space.

Forward

Vector3Proxy SmashHammer.Scripting.ITransformable.Forward

get

The forward vector.

This transform's forward vector in world space.
